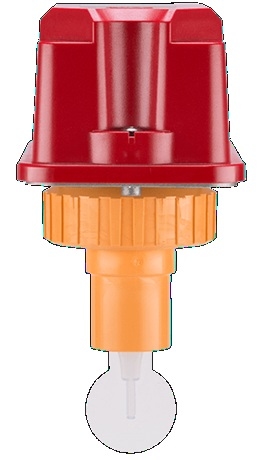

System Sensor WFDNFS CPVC Flow Switch

Product Description

The WFDNF Series waterflow detectors consist of a rugged, NEMA 4-rated enclosure that is more damage resistant than previous metal designs. The waterflow detector is designed for both indoor and outdoor use, with the widest available temperature range, from 32°F to 150°F.The WFDNFS with glue-in tee adapter fits 1”, 1¼”, 1½”, and 2” CPVC tees manufactured by Tyco, Spears, NIBBCO, and IPEX. Clearly marked plastic paddles are included to fit the different installation configurations.UL-listed models are equipped with tamper-resistant cover screws to prevent unauthorized entry. Inside, two sets of SPDT (Form C) synchronized switches are enclosed in a durable terminal block with an layout designed to make wiring easy. The wire-ready COM terminals are on a different elevation with a large barrier between switches and easy-to-read, raised, textured lettering. An optional cover tamper switch securely snaps into place, no tools required.The WFDNFS and WFDNFT incorporate a mechanical time delay feature that minimizes the risk of false alarms due to pressure surges or air trapped in the fire sprinkler system. The large and easy-to-turn timer dial makes setting the waterflow detector easy with high-contrast, pad-printed markings. The dial offers three tabs to help with turning: the largest tab is located on the dial position for approximately 60 seconds and a notch in the dial indicates approximately 30 seconds, making the detector easy to set in dimly lit locations.The WFDNF series is designed for accuracy and repeatability. Detectors also offer improved performance during vibration in riser applications where detectors are exposed to a large in-rush of water
